Figures in which the part appears:
3221884-ETL (Grove GMK 5250L )
3221885-ETL (Grove GMK 5250L )
3221886-ETL (Grove GMK 5250L )
3221887-ETL (Grove GMK 5250L )
3221888-ETL (Grove GMK 5250L )
3221889-ETL (Grove GMK 5250L )

Also known as:
3317550, 03317550, 003317550
Parts for Grove GMK 4080-3, Figure 3221888-ETL:

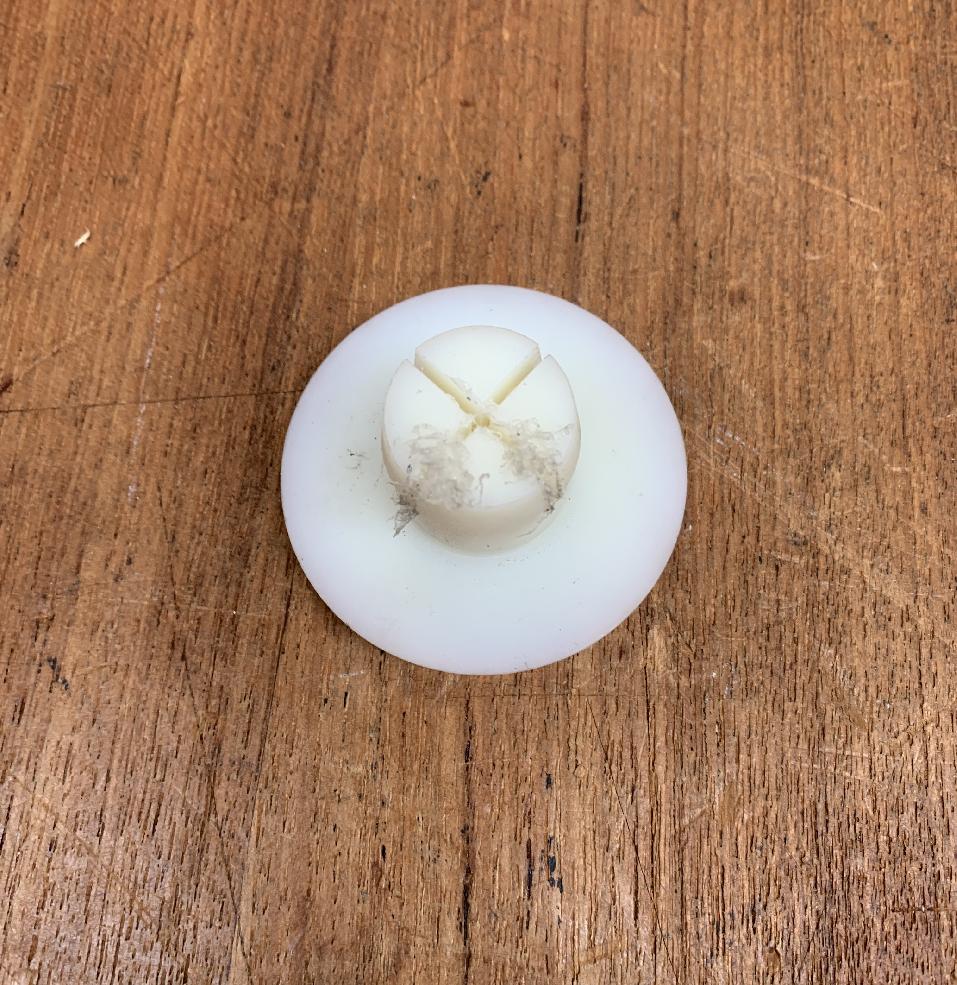

Part Number 3317550: GUIDE PIN L=25, T=5
Pos nr Part number Description Weight in kg
2 3224381 ROPE PRO
3 3224455 SLIDER 2.700
4 3224456 SLIDER 2.700
5 3224457 SLIDER 1
6 3224458 SLIDER 1.100
7 3224459 SLIDER 1.400
8 3224460 SLIDER 1.100
9 3224461 SLIDER 1
10 3215501 HOLDER 1
11 3225517 SHIM
12 3225518 SHIM
13 3225553 SHIM
14 3224407 PLATE
15 3224408 PLATE
16 3224409 PLATE
17 3224410 PLATE
18 3224359 SPACER PIECE
19 0100791 HEXAGON SOCKET HEAD CAP SCREW 0.02
20 0437944 HEXAGON BOLT 0.09
21 0437529 WASHER 12 0.006
22 0437644 HEXAGON NUT 0.084
23 0437192 HEXAGON SCREW 0.046
24 0437530 WASHER 16 0.01
25 0437204 HEXAGON SCREW 0.97
26 0437645 HEXAGON NUT 0.030
28 1146946 HEXAGON SOCKET HEAD CAP SCREW 0.04
29 0437213 HEXAGON SCREW
30 1148087 HEXAGON NUT
31 3221935 LOCKING UNIT TELE 5
32 3228327 LOCKING UNIT TELE 5
33 0434493 CIRCLIP
34 3224462 SLIDER
35 3224463 PLATE
36 1207473 HEXAGON SOCKET HEAD CAP SCREW 0.145
37 3225590 SHIM
38 3224366 SLIDER
39 3224367 PLATE
40 3224368 PLATE
41 3224369 SLIDER
42 3224370 PLATE
43 3224371 PLATE
44 3317553 GUIDE PIN L=28, T=8 0.02
52 0100789 HEXAGON SOCKET HEAD CAP SCREW 0.077
53 0437745 HEXAGON NUT 0.015
54 1146978 HEXAGON SOCKET HEAD CAP SCREW 0.05
58 2251403 EXTENSION PIECE 0.01
59 3046826 PLUG SCREW COUPLING 0.01
60 3155722 LUBRICANT HOSE
61 3320928 SCREW CONNECTION 1
62 3320927 HEXAGON NUT 0.01
63 3143807 ENSAT-THREADED-INSET
64 3248823 GUIDE
65 2314439 WASHER 10 0.005
69 0437183 HEXAGON SCREW 0.026
70 0437744 HEXAGON NUT 0.014
71 3046056 WASHER 12 0.020
101 3225512 SHIM
102 3225513 SHIM
103 3225514 SHIM
104 3225515 SHIM
105 3225516 SHIM
108 3225519 SHIM
109 3225520 SHIM
110 3225521 SHIM
111 3225522 SHIM
112 3225523 SHIM
113 3225548 SHIM
114 3225549 SHIM
115 3225550 SHIM
116 3225551 SHIM
117 3225552 SHIM
119 3225554 SHIM
120 3225555 SHIM
121 3225556 SHIM
122 3225557 SHIM
123 3225558 SHIM
124 3225559 SHIM
125 3225584 SHIM
126 3225585 SHIM
127 3225586 SHIM
128 3225587 SHIM
129 3225588 SHIM
130 3225589 SHIM
132 3225591 SHIM
133 3225592 SHIM
134 3225593 SHIM
135 3225594 SHIM
136 3225595 SHIM
137 3224353 SPACER PIECE
138 3224356 SPACER PIECE
139 3277921 SPACER PIECE
140 3224362 PLATE
141 3224363 PLATE
142 3224364 PLATE
143 0100792 HEXAGON SOCKET HEAD CAP SCREW 0.02
149 3317550 GUIDE PIN L=25, T=5 0.015
150 3317551 GUIDE PIN L=25, T=6 0.01
151 3317552 GUIDE PIN L=27, T=7 0.02
152 3325228 HEXAGON SOCKET HEAD CAP SCREW 5
155 1685807 HEXAGON SOCKET HEAD CAP SCREW 0.035
