Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

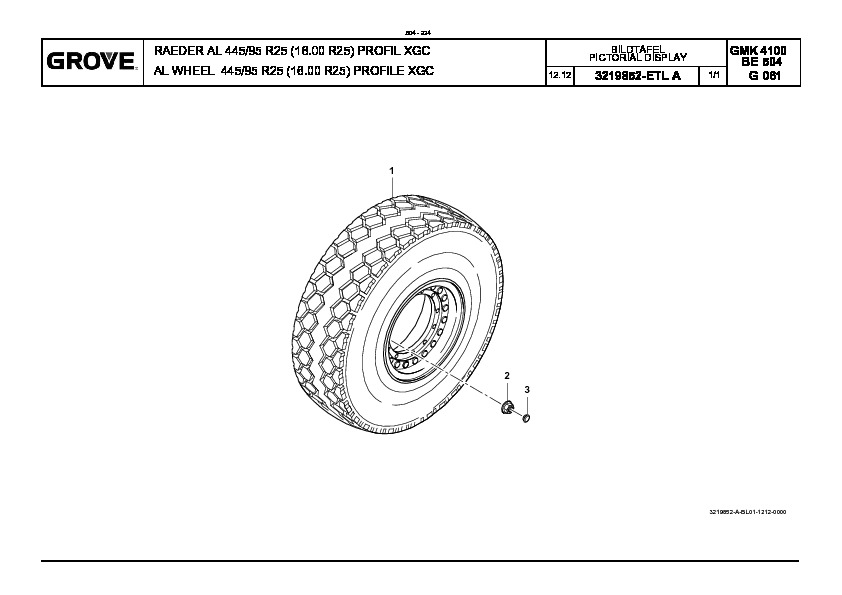

3219852-ETL (Grove GMK 4100-L AL WHEEL 445/95 R25 (16.00 R25) PROFILE XGC)
Also known as:
3219853, 03219853, 003219853
Parts for Grove GMK 4100-L, Figure 3219852-ETL:
Part Number 3219853: WHEEL CPL. AL 445/95 R25 (16.00
Pos nr Part number Description Weight in kg
1 3219853 WHEEL CPL. AL 445/95 R25 (16.00
2 76591000 WHEEL NUT
3 80038328 PLUG 0.030
