Search for Crane Part number
(click on image to open PDF document)
Figures in which the part appears:
977-1720 (Demag AC 100 )
977-1900 (Demag AC 100 )
977-3620 (Demag AC 100 )
89-1700e (Demag AC 25 )
989-1700e (Demag AC 25 )
989-1700f (Demag AC 25 )
989-3611a (Demag AC 25 )
989-3612c (Demag AC 25 )
989-3640c (Demag AC 25 )
977-1900 (Demag AC 100 )
977-3620 (Demag AC 100 )
89-1700e (Demag AC 25 )
989-1700e (Demag AC 25 )
989-1700f (Demag AC 25 )
989-3611a (Demag AC 25 )
989-3612c (Demag AC 25 )
989-3640c (Demag AC 25 )
Also known as:
19217540, 019217540, 0019217540
19217540, 019217540, 0019217540

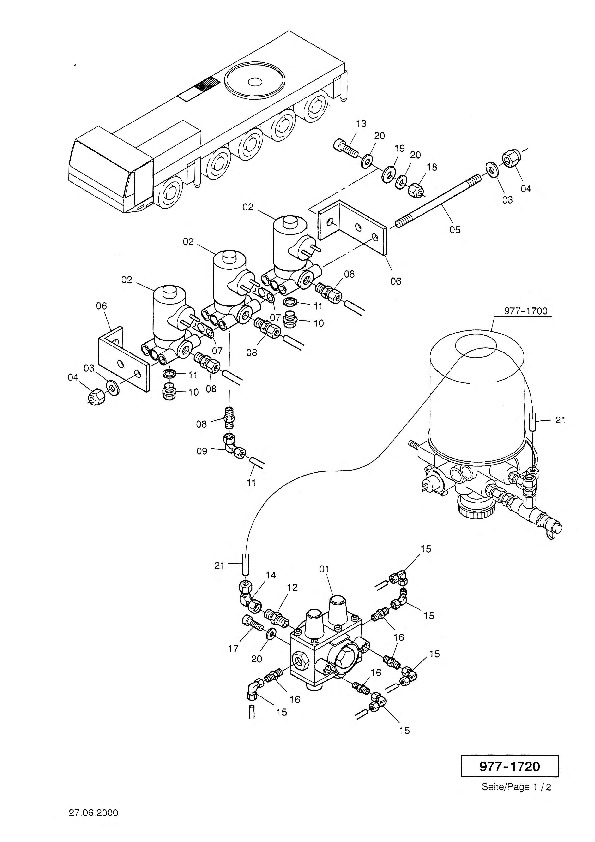

Parts for Demag AC 100, Figure 977-1720:
Part Number 19217540: GASKET
Part Number 19217540: GASKET
| Pos nr | Part number | Description | Weight in kg |
|---|---|---|---|
| 1 | 63421040 | VALVE | |
| 2 | 65438740 | SOLENOID VALVE | |
| 3 | 51032198 | DISC | 0.002 |
| 4 | 50987098 | NUT ED 51116298 | |
| 5 | 51008698 | THREAD PIN | |
| 6 | 54234140 | RETAINER | |
| 7 | 57613240 | GASKET | |
| 8 | 55161740 | SOCKET | |
| 9 | 55144440 | SOCKET | |
| 10 | 50985098 | PLUG | |
| 11 | 19217540 | GASKET | |
| 12 | 57644240 | SOCKET | |
| 13 | 50978898 | SCREW | |
| 14 | 57643840 | SOCKET | |
| 16 | 55160940 | SOCKET | |
| 17 | 50978798 | SCREW | |
| 19 | 51031498 | WASHER | |
| 21 | 61366140 | PIPE ASSY. |
